AUTOMATED EQUIPMENT

PRECISION PROCESSING EQUIPMENT

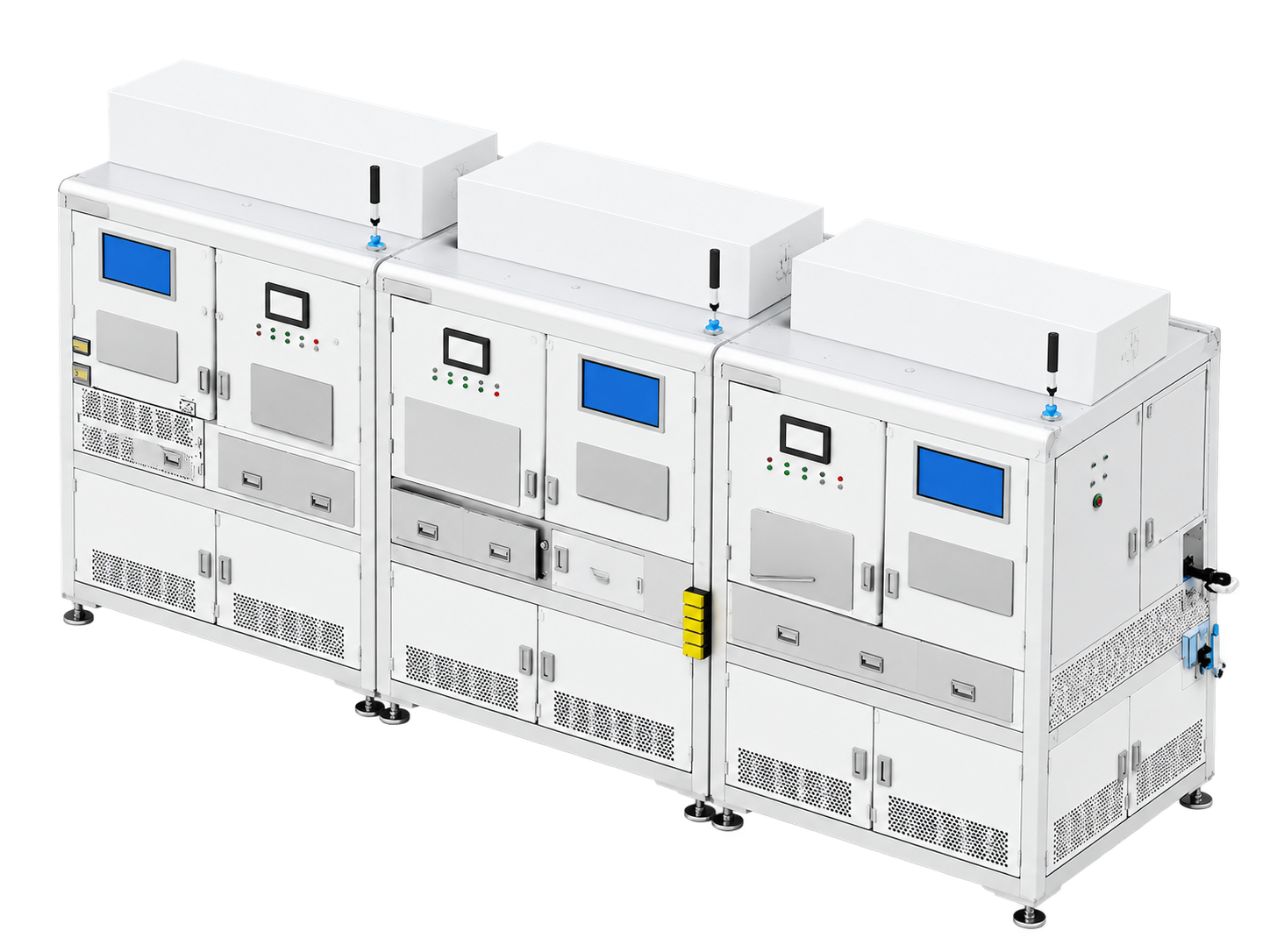

Precision Processing Equipment:

Our precision processing equipment primarily includes dispensing equipment, FPC bending equipment and lamination equipment used to process components before or during product assembly.

Specifically, our dispensing equipment performs high-speed dispensing along predefined paths on two-dimensional and three-dimensional curved surfaces and supports automated path generation, replication and inspection, while precisely controlling the amount of adhesive dispensed. Our FPC bending equipment pre-bends flexible printed circuits into specified shapes and angles and can perform multiple bending operations at different positions and angles. Our lamination equipment applies protective films and attaches components with high positional and angular accuracy, including on products with highly curved surfaces.

PRECISION ASSEMBLY EQUIPMENT

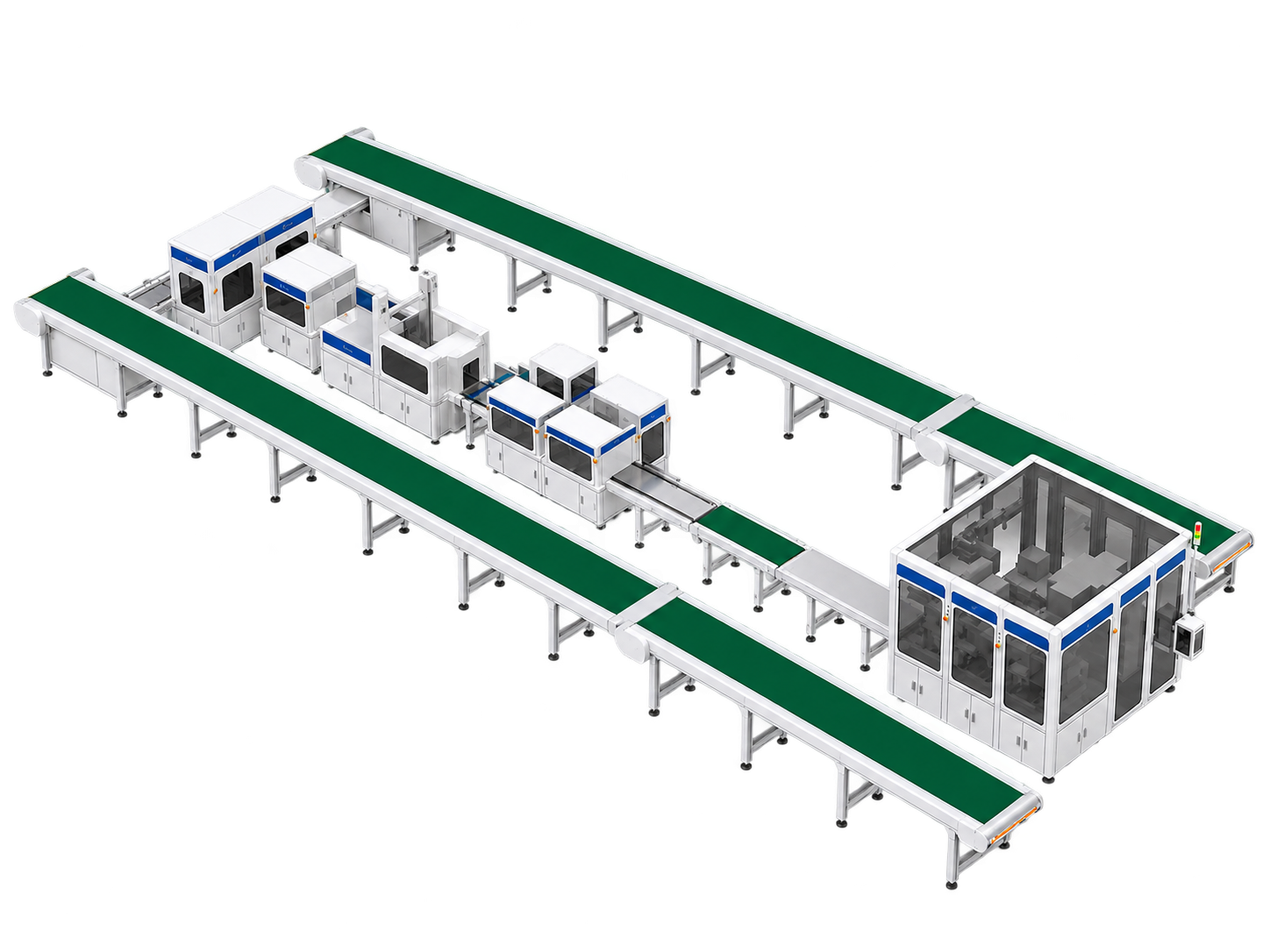

Precision Assembly Equipment:

Our precision assembly equipment primarily includes assembly equipment, screw fastening equipment and pressure holding equipment used to assemble, fasten and secure components in their required positions.

Our assembly equipment integrates processes such as loading and unloading, FPC bending, dispensing, screw fastening and component assembly across multiple stations and can achieve high assembly accuracy. Our screw fastening equipment uses vision-guided positioning and multi-axis motion control to automatically position and fasten screws while monitoring fastening torque and quality in real time. Our pressure holding equipment applies controlled pressure during component assembly through multi-station operation and closed-loop pressure control to help maintain consistent assembly quality.

PACKAGING EQUIPMENT

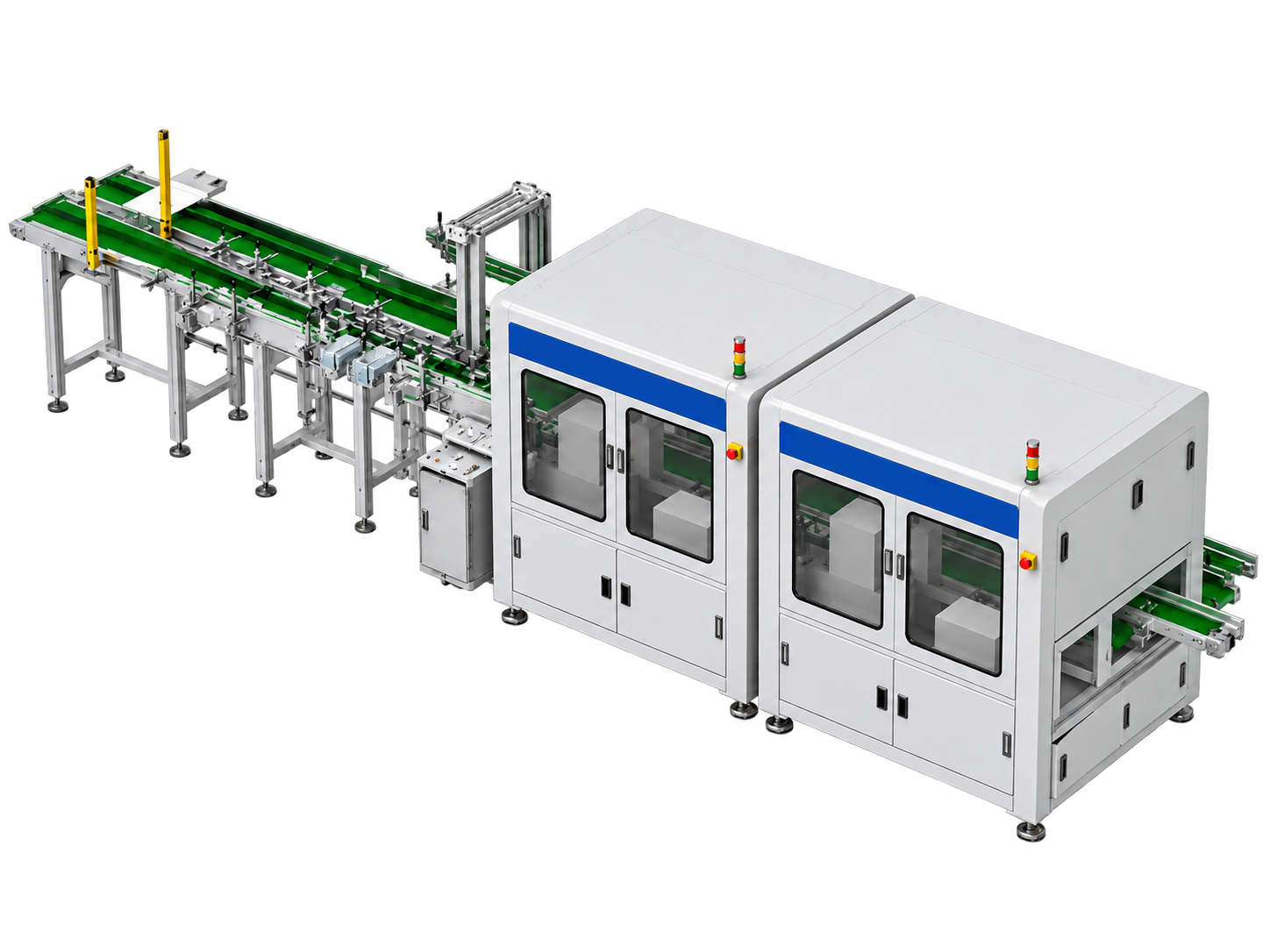

Packaging Equipment:

Our packaging equipment automates the labeling, protective film application and packaging of finished consumer electronics products. It uses vision-guided robotic systems to position products and apply labels and protective films with high accuracy and can accommodate different product specifications through modular designs. Its software also supports equipment monitoring, production data collection and product traceability. The following are certain representative automated equipment for consumer electronics.

TESTING EQUIPMENT

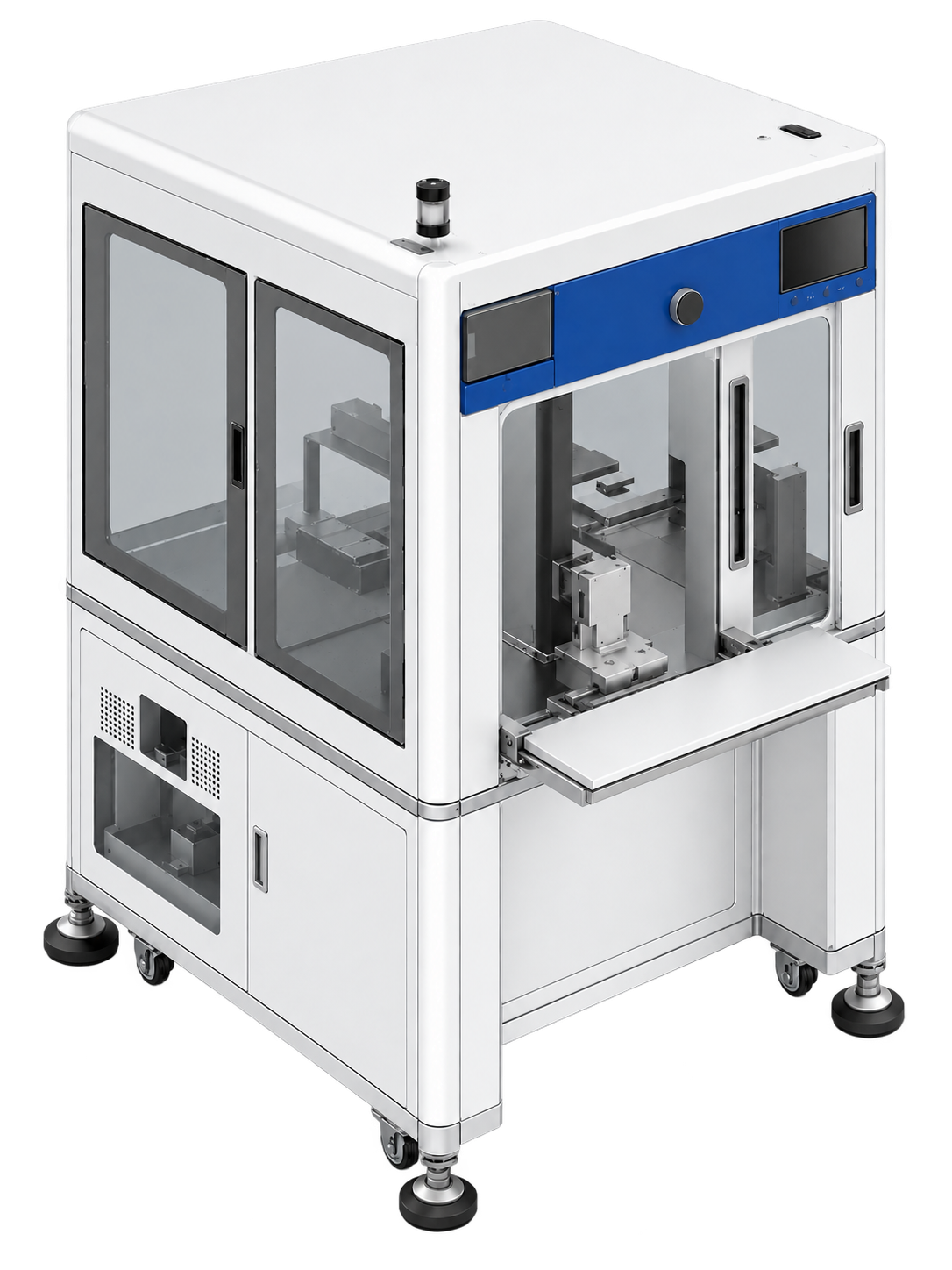

Testing Equipment:

Our testing equipment primarily includes vision inspection equipment and test handling equipment used for product inspection and automated handling between testing processes.

Our vision inspection equipment combines high-precision three-dimensional vision and laser measurement technologies to detect surface defects and inspect product dimensions, gaps, alignment and surface profiles, with software that can be adapted to different products. Our test handling equipment uses six-axis robotic systems and vision-guided positioning to transfer products between testing processes, route them through specified testing workflows and sort conforming and defective products, and can interface with different testing systems and testing requirements.

OTHERS——On-Line High Precision Coating Machine Manual

Thank you very much for choosing the FST-200 Coating Machine developed . This equipment is characterized by easy operation and high working efficiency and is suitable for batch production of various products.

This manual is intended for production operators. Please be sure to read this manual carefully at before installing and operating the machine, and familiarize yourself with all equipment knowledge, safety and precautions before starting to use the machine, and follow the operating instructions in this book.

Download A File

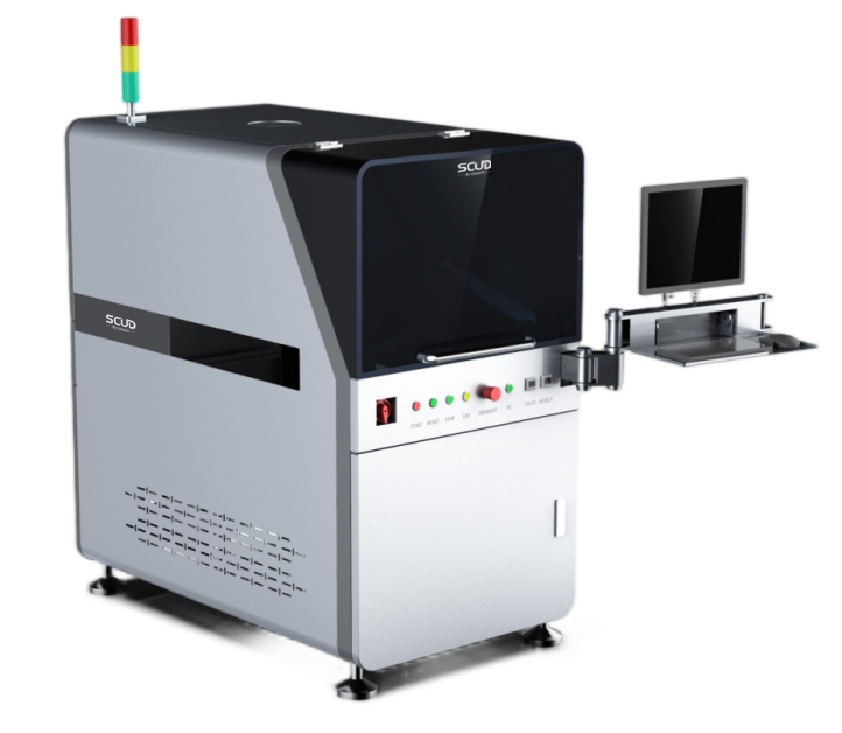

OTHERS——Universal Dispensing Machine

High-quality dispense through Automatic glue weighing, Automatic adjustment of glue parameters and Glue path re-check

High-efficiency of tuning, LBU, and quick glue-path duplication among equipment through quick duplication motion coordinates of each shafting and glue path

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——FST-200 Online Coating Machine

Main Advantages:

Fast speed, stable operation

Ability to change spraying modes without interruption, greatly improving efficiency

Flexible multi-axis, multi-valve control, enabling multi-angle rotation and spraying of complex PCB boards

Proprietary multi-mode spray valve and needle valve to meet various coating requirements

Strong process control capability to ensure high- quality and consistent spraying

Easy implementation of online selective spraying function

Optional QR code and barcode scanning, automatic program invoca-tion, and error preventiontional QR code and barcode scanning, automatic program invocation, and error prevention

Download Manual

Technical Specifications:

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——High-speed High-precision Inline Dispensing Machine FST-300

Main Advantages:

High precision, high performance

Strong adaptability, meeting the flexible production needs of factories

Various optional configurations meet the high standards of customer production requirements

Suitable for various application scenarios such as dispensing, solder paste dispensing, and grease dispensing

Technical Specifications:

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——All In One Dispensing Machine FST-600

Main Advantages:

Utilizes an industry-first monolithic cast iron frame to effectively dampen vibrations caused by high-speed operation and guarantee long-term operational stability.

Equipped with grating ruler positioning and linear motor drive to ensure dispensing accuracy and consistency.

Optional connectivity configurations are available to minimize manual intervention.

Adjustable track width accommodates substrates/fixtures of different sizes and specifications.

Capable of interfacing with MES systems for real-time upload of production status information, system anomaly alerts, and traceability.

Compatible with international semiconductor communication protocols.

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Linear Dual-drive Marble Platform Dispensing Machine FST-800

Main Advantages:

The drive system utilizes linear motors with grating rulers, servo motors with precision ball screws, ensuring high-speed accuracy, stability, and reliability

The equipment is suitable for the Mini / Micro LED industry, specifically designed for Mini LED dispensing/ solder paste, capable of lens dispensing, surface filling, DAM & FILL processes, etc

It is equipped with an inde-pendent piezoelectric jet valve and control system to precisely control height/diameter ratio, achieving high craftsmanship, efficiency, and stability in micro-scale LED dispensing

STANDARD AND OPTIONAL EQUIPMENT FOR ONLINE MACHINES :

Technical Specifications:

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Desktop Vision Series Dispensing Machine FST-350/450/550

Main Advantages:

Precise and fast positioning enabled by high end linear motors.

Intuitive PC based software speeds up programming of virtually unlimited dispensing patterns.

Includes analytical tools such as camera for AOI, scale for weight verification and laser for height measurement.

Process data analysis and upload to MES/HIVE or any other centralized data center.

Compatible with all SCUD valves.

Technical Specifications:

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Piezoelectric Jet Valve FST-8000 (Cold Glue Valve)

Main Advantages:

Overheat protection to prevent damage to the glue valve from overheating

Innovative nozzle pre-tightening detection function, no need to adjust parameters when repeatedly disassembling and assembling.

Highly integrated: Nozzle heating, valve controller, and hot melt adhesive heating are integrated into one controller

1000 dots/second

Maximum jetting speed

1 nanoliter

Minimum jetting volume

0.15mm

Minimum glue dot diameter

0.2mm

Minimum dispensing line width

310g

Weight of piezoelectric valve body

1~2,000,000 mPas

Applicable viscosity range

71 X 26 X 91mm

Dimensions (L/W/H)

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Piezoelectric Jet Valve FST-8000 (Hot Melt Glue Valve)

Main Advantages:

Overheat protection function to prevent damage to the glue valve from overheating

Innovative nozzle pre-tightening detection function, no need to adjust parameters when repeatedly disassembling and assembling

Improved design with fewer consumables and lower costs, resulting in longer lifespan of the glue valve and consumables

Highly integrated: Nozzle heating, valve controller, and hot melt adhesive heating are integrated into one controller

1000 dots/second

Maximum jetting speed

1 nanoliter

Minimum jetting volume

0.15mm

Minimum glue dot diameter

0.2mm

Minimum dispensing line width

> 0.9

Height-to-width ratio

570g

Weight of piezoelectric valve body

1~2,000,000 mPas

Applicable viscosity range

106 X 47 X 203 mm

Dimensions (L/W/H)

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Piezoelectric Jet Valve FST-9000

Main Advantages:

Overheat protection prevents damage to the valve due to overheating

Innovative nozzle pre-tightening detection function allows for repeated assembly without the need for parameter adjustment

Improved design reduces consumables and costs, extending the lifespan of both the valve and consumables

High integration: Nozzle heating, valve controller, hot melt adhesive heating integrated into one controller

Top adjustment for easier adjustment of nozzle status

Nozzle tightening feature to prevent loosening

1000 dots/second

Maximum jetting speed

1 nanoliter

Minimum jetting volume

0.15mm

Minimum glue dot diameter

0.2mm

Minimum dispensing line width

310g

Weight of piezoelectric valve body

1~2,000,000 mPas

Applicable viscosity range

71 X 26 X 91mm

Dimensions (L/W/H)

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Hot Melt Adhesive Piezoelectric Valve FST-9000HM

Main Advantages:

Overheat protection to prevent damage to the valve due to overheating

Innovative nozzle pre-tightening detection function, allowing for repeated assembly without the need for parameter adjustment

Improved design with reduced consumables and lower costs, resulting in longer lifespan for both the valve and consumables

High integration: Nozzle heating, valve controller, and hot melt adhesive heating integrated into one controllerr

Top adjustment for easier regulation of nozzle status

Nozzle tightening feature to prevent loosening

1000 dots/second

Maximum jetting speed

1 nanoliter

Minimum jetting volume

0.15mm

Minimum glue dot diameter

0.2mm

Minimum dispensing line width

> 0.9

Height-to-width ratio

570g

Weight of piezoelectric valve body

1~2,000,000 mPas

Applicable viscosity range

106 X 47 X 203 mm

Dimensions (L/W/H)

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-350 High Pressure Valve

Main Advantages:

Small dispensing size

Provides optimal flexibility and controllability

Unaffected by air bubbles in the fluid

No residue inside the valve

Clean dispensing cutoff

Compatible with high-speed solenoid valves

Simple and convenient maintenance

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-330 Precision Needle Valve

Main Advantages:

Small dispensing size

Unaffected by air bubbles in the fluid

No residue inside the valve

Clean cut-off after dispensing

Compatible with high-speed solenoid valves

Easy and convenient maintenance.

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Single-component Screw Valve FST-3000

Main Advantages:

Volumetric quantitative fluid delivery High-precision closed-loop motor drive

No dripping or stringing issues with the valve

Suitable for multiple types of fluid applications

Adaptability to various viscosity adhesives

High strength and corrosion resistance of screw and plunger, resulting in long service life Consistent dispensing, stable dispensing volume, and high dispensing accuracy

95 X 70 X 212mm

Dimensions (L/W/H)

870g

Weight of screw valve body

2000r/min

Maximum speed

0.25mm

Minimum dot diameter

5,000mPas~100,000mPas

Applicable viscosity range

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Hot Melt Adhesive Screw Valve FST-3000HM

Main Advantages:

Consistent dispensing with stable dispensing volume and high dispensing accuracy

Volumetric quantitative fluid delivery, high-precision closed- loop motor drive

Suitable for multiple types of fluid applications, adaptable to various viscosity adhesives

Suitable for high-precision dispensing of hot melt adhesive , as well as other fluids requiring heating for dispensing

No dripping or stringing issues with the valve, high consistency in process details

High strength and corrosion resistance of screw and plunger, resulting in long service life

1~3000r/min

Speed

Quantitative and dynamic modes

Dispensing modes

1~600KPA

Feeding pressure

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——Dual-component Screw Valve FST-SS0505

Main Advantages:

Volumetric quantitative fluid delivery

High-precision closed-loop motor drive

Suitable for multiple types of fluid applications

Suitable for low, medium, and high viscosity fluids

Accurate dispensing ratio with uniform mixing

High strength and corrosion resistance of screw and plunger, resulting in long service life

Good dispensing consistency with stable dispensing volume and high dispensing accuracy

Can be paired with a cooling system to slow down the reaction time of mixed adhesive

Can be paired with a feeding system for more precise control of adhesive usage and mixing ratio

60 X 35 X 270mm

Dimensions (L/W/H)

2000g

Weight of screw valve body

1:15

Maximum mixing ratio

0.001cc

Minimum dispensing volume

1mPas~500,000mPas

Applicable viscosity range

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——High-speed Pneumatic Jet Valve P-1000

Main Advantages:

Non-contact jet dispensing technology

Precision dispensing

Ultra-low operating costs

Convenient and easy cleaning and maintenance

Ultra-high-speed dispensing improves production efficiency

Improved design significantly extends the lifespan of the valve and consumables

Configurations available in various materials and specifications to meet different process requirements

76 X 59 X 130 mm

Dimensions

0.6Kg

Net weight

280 dots/second

Maximum dispensing speed

0.2mm

Minimum dispensing diameter

From 0.05mm to 0.60mm

Nozzle diameter

Min. 0.6MPa

Solenoid valve input air pressure

100

Maximum heating temperature

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——High-speed Paste Dispensing Valve P-6000

Main Advantages:

Non-contact solder paste jetting technology

High-speed soldering with 200 dots per second

High precision, high consistency

Can handle different types of solder paste

Easy operation, easy cleaning

Minimum solder paste dot size: 350um

Extremely low usage and maintenance costs

Can achieve flying mode solder paste printing

124 X 30 X 156 mm

Dimensions

0.6Kg

Net weight

280 dots/second

Maximum dispensing speed

200Hz

Maximum operating frequency of solenoid valve

From 0.05mm to 0.60mm

Nozzle diameter

Min. 0.6MPa (90Psi)

Solenoid valve input air pressure

0-30psi

Feeding pressure

100

Maximum heating temperature

0.06-0.60mm, various options available

Nozzle diameter

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-810 Large Area Atomizing Spray Valve

Main Advantages:

Used for atomizing spray process of low to medium viscosity range (1~5,000cPs) adhesives

Spray coating width is 6mm or more

The valve body part is made of stainless steel material, providing optimal material

Easy and convenient adjustmen

Suitable for the vast majority of common coating adhesives compatibility

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-811 Narrow Width Atomizing Spray Valve

Main Advantages:

Used for atomizing spray process of low to medium viscosity range (1~5,000cPs) adhesives

Extended nozzle design allows for narrow gap coating

Applications that typical spray valves cannot achieve

Minimum coating width is 2mm

The valve body part is made of stainless steel material, providing optimal material compatibility

Easy and convenient adjustment

Suitable for the vast majority of common coating adhesives

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-820 Micro-dose Atomizing Spray Valve

Main Advantages:

Suitable for atomizing spray of low to medium viscosity range (1~5,000cPs) ad-hesive

Especially suitable for highly selective coating processes

Replaceable dispensing nozzles to accommodate different process requirements

The valve body part is made of stainless steel material, providing optimal material compatibility

Easy and convenient adjustment

Suitable for the vast majority of common coating adhesives

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-830 High Viscosity Atomizing Spray Valve

Main Advantages:

Suitable for atomizing spray of adhesives ranging from low to high viscosity (1~20,000cPs)

Capable of meeting virtually any spray application requirement

The valve body part is made of stainless steel material, providing optimal material compatibility, Simple flow adjustment, convenient and user-friendly

Separated valve body design prevents contamination of the pneumatic parts

Suitable for the vast majority of common coating adhesives

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-880 Thin Film Water Curtain Valve

Main Advantages:

Atomization process, adhesive applied in a thin film form on the product surface

Edge definition: +/-0.75mm

Coating can be controlled within a range of 6mm to 19mm

Greater than 99% transfer efficiency, resulting in better material utilization and waste reduction

Suitable for low viscosity (<100cPs) materials, Can coat complex circuit boards within seconds

The valve body part is made of stainless steel ma terial, providing optimal material compatibility

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com

OTHERS——HV-850 Triple Mode Coating Valve

Main Advantages:

single coating valve capable of three different operating modes: line drawing, vortex, and atomization

Provides optimal flexibility and controllability

The range of film thickness controlled by a single action ranges from 6.25um to over 0.5mm, Suitable for adhesives with low to medium viscosity range (1~5,000cPs)

Operating modes can be switched during a single action

The valve body part is made of stainless steel material, providing optimal material compatibility

Distributor 1: SMT Solid

Contact phone: +52 (656) 624 1530 ; Webpage:https://smtsolid.com

Distributor 2: MADSER Corp.

Contact phone: +52 (614) 443 5554 ; Webpage:https://madser.com
