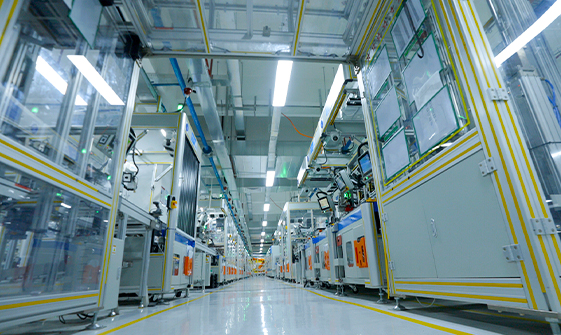

OBC Power module assembly line
Machine Features:
Production line modular, flexible design
Good homogeneity and high output: high mixing quality from screw and barrel
The key processes of the whole line include cleaning, water channel leakage, gluing, baking, tightening, gluing, airtight testing, visual inspection, electrical performance testing, etc
Automatic material distribution through MES/WMS and AGV
All lines are equipped with electronic signage and large screen
Material anti-error design, screw float height detection
Site size
Number of operators
Within 180s
Production beat

The U-shaped single-layer wire body

is used, and the worker operates on

one side and ingredients on the other side

Line body

The test station is equipped with

NG blanking position at the back
